Gibson 4 Conductor Wiring Diagram : Gibson Guitar Wiring Harness Style | schematic and wiring diagram - The bottom diagram shows the wiring that gibson uses for its volume controls.. Gibson pickup wiring no color code ultimate guitar. Les paul special wiring diagram free download wiring. All fun with guitar pickup wires is based on changing their relations. If you wanted to wire a 4 conductor dimarzio or seymour duncan in this way, just look at the diagram. Gibson wiring diagrams wiring library schematics.

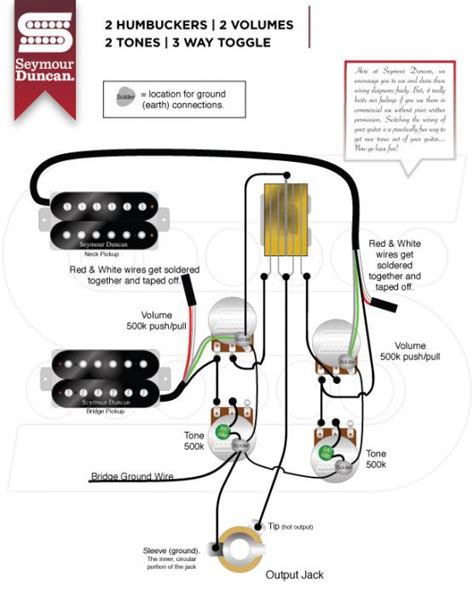

Below are links to wiring diagrams for guitar and bass as well as diagrams for basic wiring techniques and mods. All fun with guitar pickup wires is based on changing their relations. The schematic below shows the coils and their respective colors. This diagram is more suited to an american les paul where the electronics are mounted on a grounding. 2 volume pots (1 with pull/push).
RA_5739 Phase Guitar Wiring Diagram Likewise Gibson Les Paul Standard Wiring Download Diagram from static-assets.imageservice.cloud Gibson explorer wiring diagram pdf. Print the cabling diagram off in addition to use highlighters in order to trace the routine. Connect either the white or black lead wire to the volume control and connect the other lead to ground. To properly read a wiring diagram, one provides to know how the components within the system operate. Dont forget the partswire shielding. Solder your pickup's hot conductor to the pigtail inner conductor and solder your pickup's ground wire to the outer shield of the pigtail. Be very careful when working with 4 conductor wiring. 2 tone pots (1 with pull/push).
This month were going to explore four ways to configure any humbucker that has 4 conductor wiring.
If you wanted to wire a 4 conductor dimarzio or seymour duncan in this way, just look at the diagram. Edit:they're not the same as gibson. Respects your right to privacy. If pickup is out of phase with existing pickup, reverse black and red leads green & white solder together. In the last video of the vantage i wired the pickups out of phase and thus incorrectly. Thank you so much i definitely made the right choice!.thank you again for a great product, super fast turn around and just doing what you do! To properly read a wiring diagram, one provides to know how the components within the system operate. Gibson pickup wiring no color code ultimate guitar. Green & bare to ground. All fun with guitar pickup wires is based on changing their relations. Les paul special wiring diagram free download wiring. I received the pickup today and just finished wiring it in! I show quickly in this video, the right order.
Below are links to wiring diagrams for guitar and bass as well as diagrams for basic wiring techniques and mods. If you get a thin sound with both pickups in operation, you may need to change the polarity of the. Green & bare to ground. Print the cabling diagram off in addition to use highlighters in order to trace the routine. Nash les paul style wiring;
Gibson Pickup Wiring Diagram from bartolini.net 2 tone pots (1 with pull/push). Single humbucker wiring diagram 4 way wiring diagram. Thank you so much i definitely made the right choice!.thank you again for a great product, super fast turn around and just doing what you do! Nash les paul style wiring; Thanks to the les paul forum for all the info i've gained from there and to black rose customs for including a diagram of. To properly read a wiring diagram, one provides to know how the components within the system operate. Green & bare to ground. Get gibson 57 classic 4 conductor wiring diagram sample.
Get gibson 57 classic 4 conductor wiring diagram sample.
Gibson pickup wiring no color code ultimate guitar. Humbucker pickup color code charts. How to wire a gibson sg wiring an sg assortment of gibson sg wiring schematic. All fun with guitar pickup wires is based on changing their relations. Here are some images i fixed up to show the various wirings that i've noodled around with on my les pauls and flying vs. The schematic below shows the coils and their respective colors. Connect either the white or black lead wire to the volume control and connect the other lead to ground. Nash les paul style wiring; The bottom diagram shows the wiring that gibson uses for its volume controls. 'aim at perfection in everything, though in most things it is unattainable. Print the cabling diagram off in addition to use highlighters in order to trace the routine. I received the pickup today and just finished wiring it in! Basic gibson style guitar wiring diagram with 2 humbuckers 3 way toggle switch two volumes and two tone controls.
Dont forget the partswire shielding. For instance , if a module is powered up and it also sends. 2 volume pots (1 with pull/push). Edit:they're not the same as gibson. Wiring diagrams for stratocaster, telecaster, gibson, jazz bass and more.
Gibson Quick Connect Wiring Harness | schematic and wiring diagram from i.pinimg.com Wiring diagrams and color codes for gibson humbucking pickups. Respects your right to privacy. If you wanted to wire a 4 conductor dimarzio or seymour duncan in this way, just look at the diagram. In the last video of the vantage i wired the pickups out of phase and thus incorrectly. Below are links to wiring diagrams for guitar and bass as well as diagrams for basic wiring techniques and mods. Thank you so much i definitely made the right choice!.thank you again for a great product, super fast turn around and just doing what you do! The colors and polarity are very important. 2 tone pots (1 with pull/push).

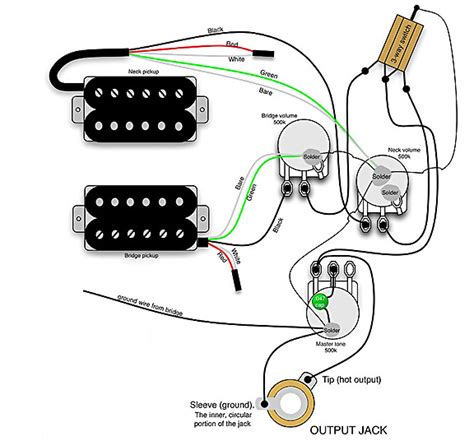

Basic gibson style guitar wiring diagram with 2 humbuckers 3 way toggle switch two volumes and two tone controls.
Solder your pickup's hot conductor to the pigtail inner conductor and solder your pickup's ground wire to the outer shield of the pigtail. Follow gibson on social media. Then once you know find the diagrams and install them! Respects your right to privacy. Lowrance hds 7 wiring diagram at manuals library. Red:solder to bare, solder to ground (top of pot) black:solder to volume potentiometer or to selector switch white:solder to green, tape. Here are some images i fixed up to show the various wirings that i've noodled around with on my les pauls and flying vs. All fun with guitar pickup wires is based on changing their relations. Green & bare to ground. Here's your chance to get the set, with upcharge gold covers, for just $200, including free shipping (continental usa only)! A wiring diagram normally offers information concerning the family member position and also setup of gadgets and also terminals on the devices, in file type: This diagram is more suited to an american les paul where the electronics are mounted on a grounding. In the last video of the vantage i wired the pickups out of phase and thus incorrectly.
