Xor Ladder Logic Diagram : Logic gates, Boolean equation and equivlent ladder diagram - HFO POWER PLANT - Engr fahad — august 23, 2019 add comment.. When input a and input b are not activated then there is 0 output. It is one of the languages that the iec 61131 standard specifies for use with plcs. The output of the xor gate is low for similar inputs while for the dissimilar inputs the output is high. When input a and input b are not activated then there is 0 output. On a ladder diagram contacts in a horizontal rung, i.e., contacts in series, represent the logical and operations.
Basically, there are seven types of logic gates as below. It is a graphical plc programming language which expresses logic operations with symbolic notation. Using ladder diagram programming, we are connecting two switches (i1 and i2) as input and coil/lamp (q1) as output. The output of the xor gate is low for similar inputs while for the dissimilar inputs the output is high. Ladder logic was designed to have the same look and feel as electrical ladder diagrams, but with ladder logic, the physical contacts and coils are replaced with memory bits.
claudia: Fungsi Logika Digital pada Rangkaian Listrik from 4.bp.blogspot.com Engr fahad — august 23, 2019 add comment. A ladder diagram is a type of schematic diagram used in industrial automation that represents logic control circuits. Ladder logic is pretty well the universal programming language of plcs. Ladder diagrams are composed of two vertical power rails and horizontal logic rungs to form what looks like a ladder. As i mentioned earlier it has been around for decades and is pretty well understood by most in ladder logic, and logic would look like a series circuit as you can see in the following picture. On a ladder diagram contacts in a horizontal rung, i.e., contacts in series, represent the logical and operations. The output of the xor gate is low for similar inputs while for the dissimilar inputs the output is high. Ladder logic programming language is characterized by looking very similar to electrical relay circuits.
There are many control situations requiring actions to be initiated when a certain combination of conditions is realized.
The ladder logic diagram consists of two fundamental parts, which you can see as the vertical and the horizontal lines. Different types of ladder logic diagram that perform different logic gate functions. Plc lab exercise logic gates, plc ladder logic diagram examples. Two classes of ladder logic instructions qoutput: It teaches you step by step the fundamentals of ladder logic diagrams, their basics and ladder logic uses components that resemble elements used in a line diagram format to. Ladder logic programming language is characterized by looking very similar to electrical relay circuits. Programs in this language resemble ladders. Ladder logic (also known as ladder diagram or ld) is a programming language used to program a plc (programmable logic controller). It is a graphical plc programming language which expresses logic operations with symbolic notation. Draw the corresponding gate and ladder logic diagrams for each question 65. Ladder diagram is a graphical programming language that you use to develop software for programmable logic controllers (plcs). Ladder logic is pretty well the universal programming language of plcs. We have placed x0 and x1 in series and also in parallel, but in first string x0 is normally open and x1 is normally closed while in second string x0 is normally closed.
Different types of ladder logic diagram that perform different logic gate functions. In a function block diagram, the entire. Ladder logic is made out of rungs of logic, forming what. It is a graphical plc programming language which expresses logic operations with symbolic notation. Plc ladder programming plc is a logic controller which has inputs and outputs to control a particular process.
Xor Gate Electrical Circuit - Circuit Diagram Images from i.stack.imgur.com The logic diagram consists of gates and symbols that can directly replace an expression in boolean arithmetic. Ladder logic was designed to have the same look and feel as electrical ladder diagrams, but with ladder logic, the physical contacts and coils are replaced with memory bits. A program in ladder diagram notation is a circuit diagram that emulates circuits of. Ladder diagram is a graphical programming language that you use to develop software for programmable logic controllers (plcs). We have placed x0 and x1 in series and also in parallel, but in first string x0 is normally open and x1 is normally closed while in second string x0 is normally closed. Let's say if you have two high input or two low inputs the output remains low. Two classes of ladder logic instructions qoutput: On a ladder diagram contacts in a horizontal rung, i.e., contacts in series, represent the logical and operations.
Any instruction that can replace a contact.

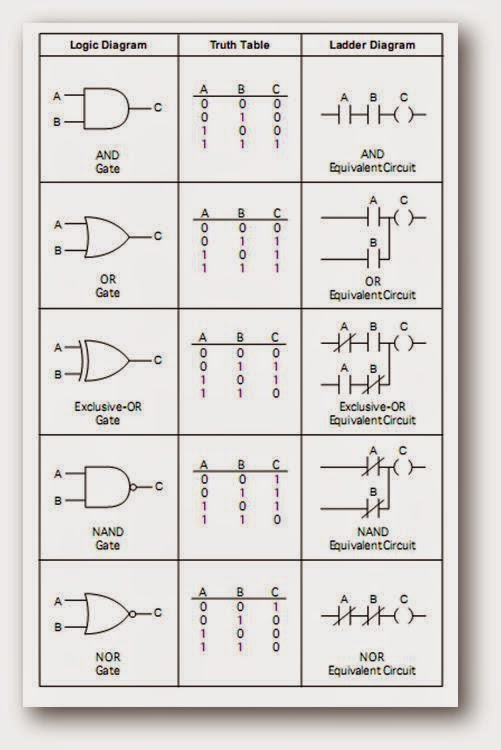

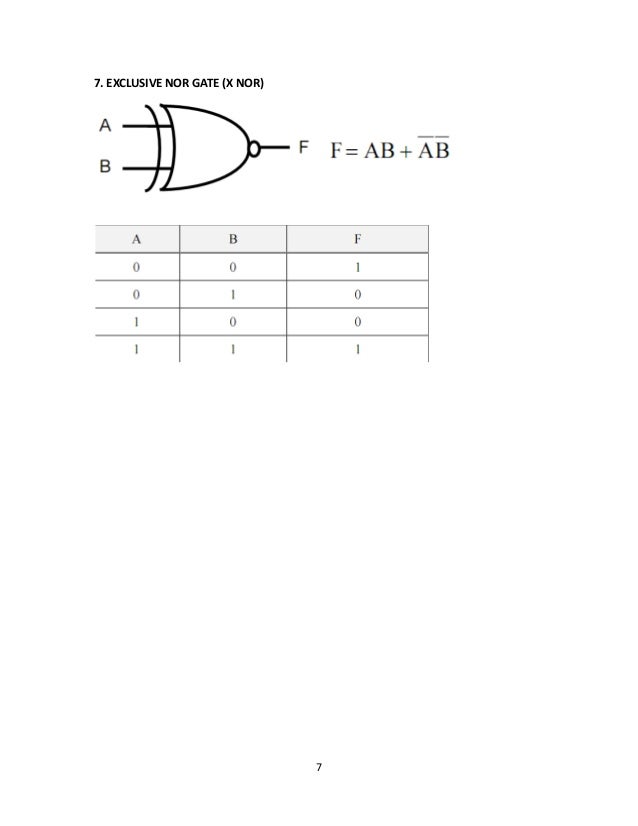

Any instruction that can replace a contact. A logic gate is a device that can perform one or all of the boolean logic operations and, nand, nor, not, or, xnor, and xor. Ladder logic (also known as ladder diagram or ld) is a programming language used to program a plc (programmable logic controller). It is one of the languages that the iec 61131 standard specifies for use with plcs. Figure 11 shows a ladder diagram for an xor gate system. Ladder logic is a programming language that represents a program by a graphical diagram based on the circuit diagrams of relay logic hardware. The output of the xor gate is low for similar inputs while for the dissimilar inputs the output is high. Ladder logic diagram, how to read ladder logic programming, ladder logic,plc ladder logic. In an xor gate ladder logic diagram, when one input is closed and the other one is open, the output will be ____. A program in ladder diagram notation is a circuit diagram that emulates circuits of. While taking the udacity pytorch course by facebook, i found it difficult understanding how the perceptron works with logic gates (and note: Ladder logic was originally a written method to document the design and construction of relay racks as used in manufacturing and process control. Programs in this language resemble ladders.
In the case of both switches (i1 and i2) are. In a function block diagram, the entire. Ladder logic diagram, how to read ladder logic programming, ladder logic,plc ladder logic. They are called ladder diagrams because they resemble a ladder, with two vertical rails (supply power) and as many rungs (horizontal lines) as there are control circuits to represent. It is primarily used to develop software for plcs used in industrial control applications.
Logical Gates in Ladder Logic for PLC - The Engineering Projects from www.theengineeringprojects.com We have placed x0 and x1 in series and also in parallel, but in first string x0 is normally open and x1 is normally closed while in second string x0 is normally closed. Engr fahad — august 23, 2019 add comment. As i mentioned earlier it has been around for decades and is pretty well understood by most in ladder logic, and logic would look like a series circuit as you can see in the following picture. Book descriptionthis book, ladder logic programming fundamentals 2019 is the second edition of the book and is updated. Ladder logic (also known as ladder diagram or ld) is a programming language used to program a plc (programmable logic controller). There are some methods to do plc programming. In a function block diagram, the entire. Ladder logic was designed to have the same look and feel as electrical ladder diagrams, but with ladder logic, the physical contacts and coils are replaced with memory bits.
Ladder diagram, better known as ladder logic, is a programming language used to program plcs (programmable logic controllers).
The ladder logic implementation of xor gate is shown in below figure: They are called, respectively, the rails and the rungs. It teaches you step by step the fundamentals of ladder logic diagrams, their basics and ladder logic uses components that resemble elements used in a line diagram format to. Ladder logic is a programming language that represents a program by a graphical diagram based on the circuit diagrams of relay logic hardware. Now, you may have noticed in the ladder logic diagram example above, there are multiple inputs in the same rung. The output of the xor gate is low for similar inputs while for the dissimilar inputs the output is high. Book descriptionthis book, ladder logic programming fundamentals 2019 is the second edition of the book and is updated. The logic diagram consists of gates and symbols that can directly replace an expression in boolean arithmetic. This logic is also the development of and, or and not. Ladder logic is pretty well the universal programming language of plcs. Ladder logic is made out of rungs of logic, forming what. The purpose of this article is not to mathematically explain how the neural network updates the weights, but to explain the logic behind how the values. In an xor gate ladder logic diagram, when one input is closed and the other one is open, the output will be ____.
